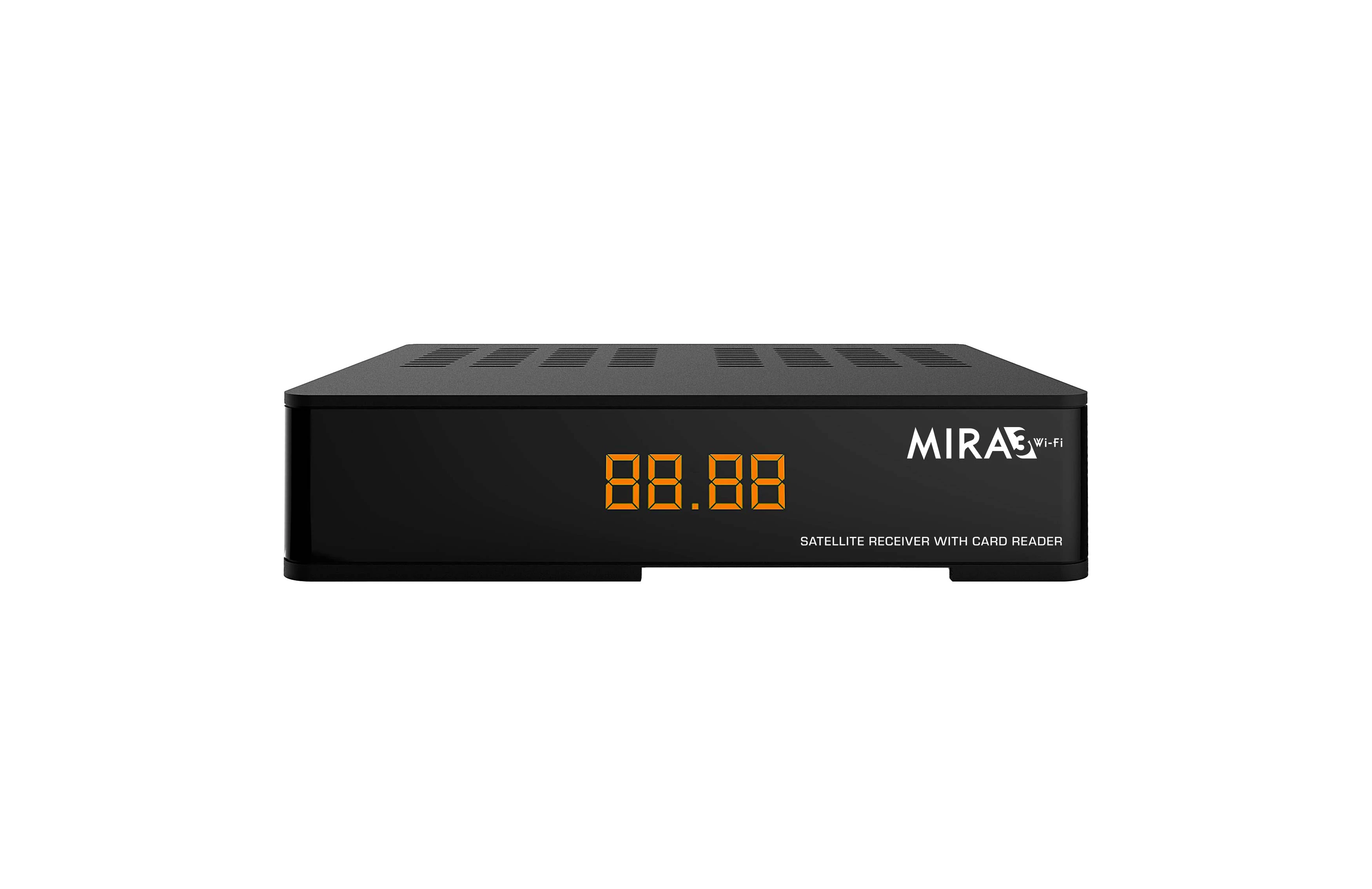

Amiko Mira3 Wifi Műholdvevő

• Timeshift support
• Channel Recording & Timeshifting Simulteniously (optional)
• Channel switching time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle supported
• Teletext supported by VBI insertion and software emulation
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Multi-Language support
• Power Consumption in Stand-By: <0.5W

Tuner & Demodulation

• Tuner Type: DVB-S / DVB-S2
• Input Connector: F-type, Connector, Female
• Signal Level: -65 to -25 dBm
• LNB Power & Polarization: Vertical: +13V/+14V,
• Horizontal: +18V/+19V
• Current: Max. 400mA
• Overload Protection
• 22KHz Tone Frequency: 22±1KHz
• DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
• Demodulation: QPSK, 8PSK
• Input Symbol Rate: 2-45 Mbps,
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

System Resources

• Main Processor: Dual Core 650MHz
• Flash Memory: 64MBits
• DDR RAM: 1024Mbits

MPEG TS A/V Decoding

• Transport Stream: MPEG-2, H.264
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
• Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
• Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

Power Supply

• Input Voltage: 12V DC
• Power Consumption: 18W Max
• Stand-By Power Consumption: <0.5W

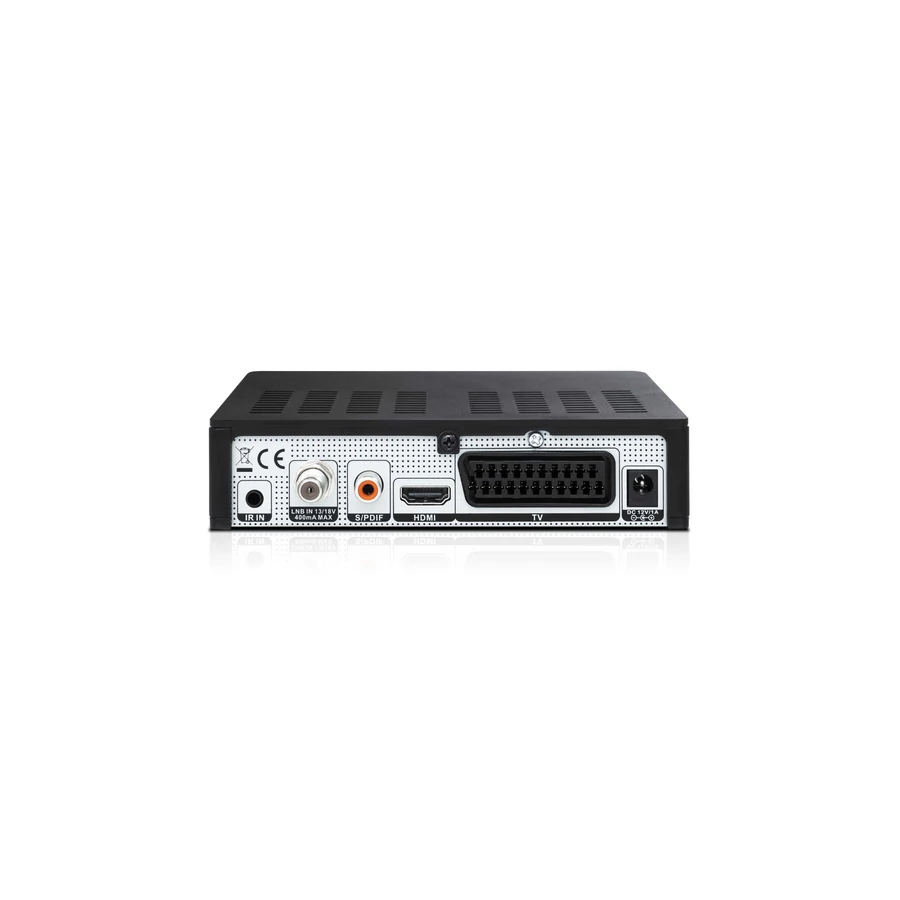

A/V & Data Input/Output

• SCART: CVBS Video out / Audio L/R out
• USB: One USB 2.0 slot
• S/PDIF: Coaxial
• HDMI: VER1.4, Type A
• IR Port: Internal & Jack Type

Physical Specifications

• Size: 144mm*40mm*110mm
• Net Weight: 0.25KG
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)
